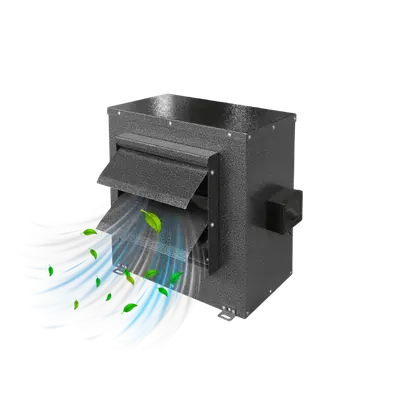

Roof Top Cabinet Fans
In Line Cabinet Centrifugal Fans In Metal

GREENBREEZE Unipessoal LDA delivers professional-grade ventilation solutions trusted across residential, commercial, and industrial sectors worldwide. Our GBC Roof Top Cabinet Fans are precision-engineered In-Line Cabinet Centrifugal Fans, constructed with a heavy-gauge steel casing, weather-resistant polyester powder coating, and an IP55-rated motor built to perform in the most demanding outdoor environments. Internally lined with 10mm melamine foam, every unit guarantees exceptional thermal efficiency, reduced noise levels, and consistent, powerful airflow all within a compact, space-saving footprint purpose-built for rooftop installations. Designed for durability, easy installation, and long-term low-maintenance performance, GREENBREEZE GBC fans are the benchmark choice for engineers, contractors, and facility managers who demand reliability without compromise.

Features

  • Robust & Weather-Resistant Construction: Made from heavy-gauge sheet steel with polyester powder coating for long-lasting durability in harsh environments.
  • Low Noise Operation: Internally lined with 10mm melamine foam to ensure reduced noise levels and comfortable operation.
  • Optimised Airflow Performance: Designed with backward curved centrifugal impellers, optimised direction flaps, and factory-installed back draft dampers to reduce turbulence and prevent reverse airflow.
  • High-Efficiency Motor System: Equipped with energy-efficient ball bearing motors with Class F insulation for reliable and continuous performance.
  • Eco-Friendly & Energy Saving: Impellers made from recycled materials with low energy consumption for sustainable operation.
  • Wide Temperature Range & Protection: Supports continuous operation from -25°C to +55°C with IP55 protection for safe indoor and outdoor use.
  • Compact & Space-Saving Design: Engineered for easy installation, even in limited or compact spaces.



Body Structure

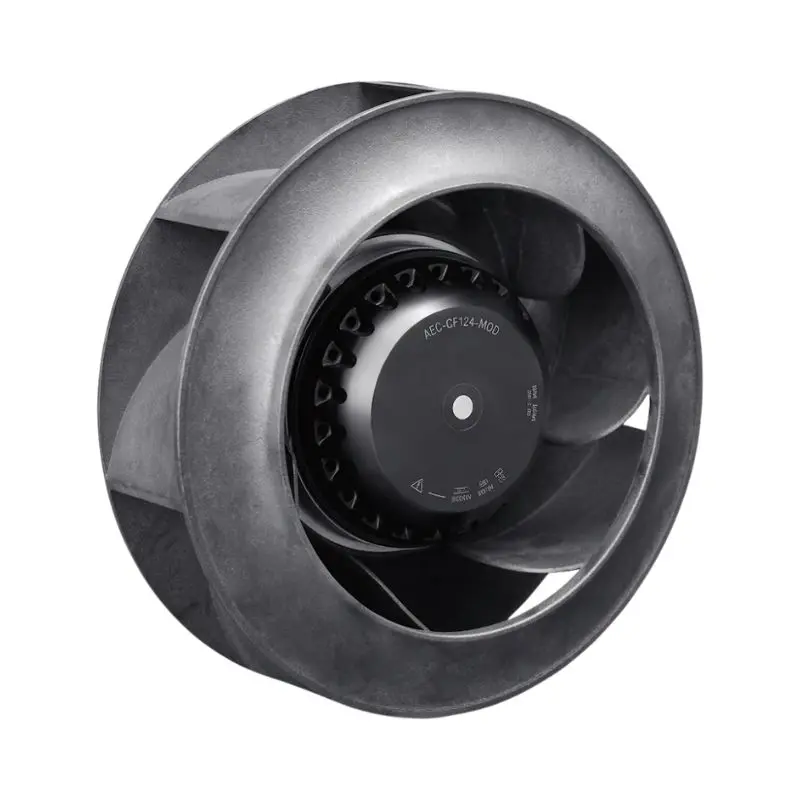

Backward Centrifugal Impeller

High efficiency Centrifugal Impeller

IP55

IP55

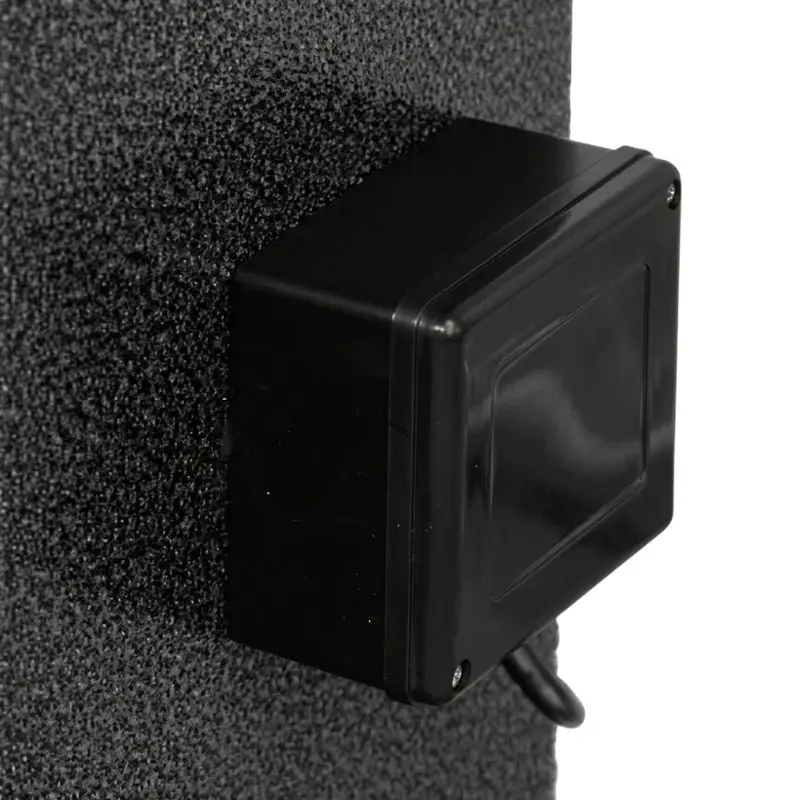

External Connection Box

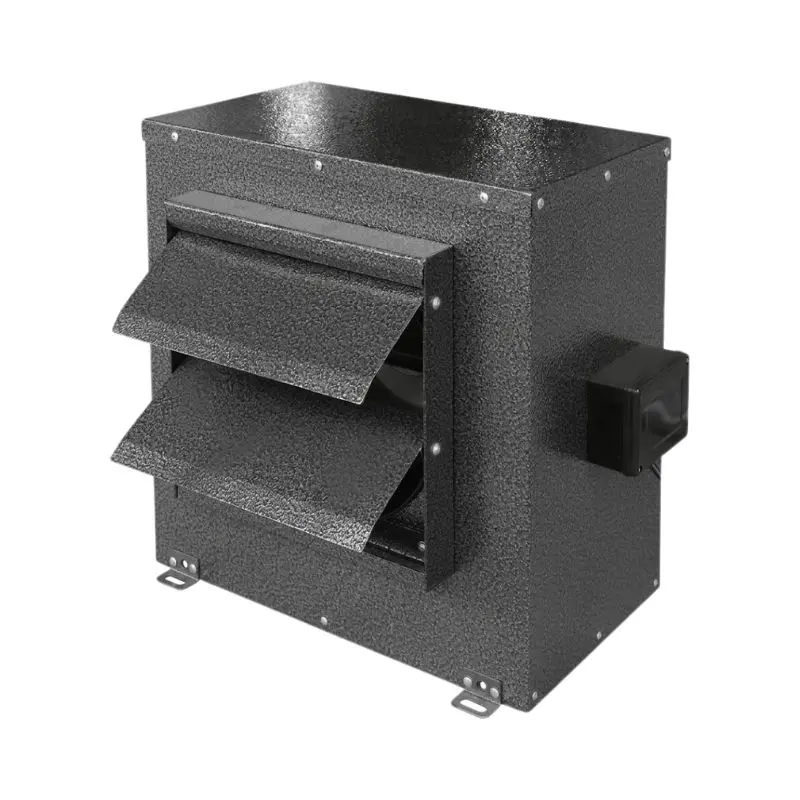

ROOF TOP CABINET FANS SUPPLIER

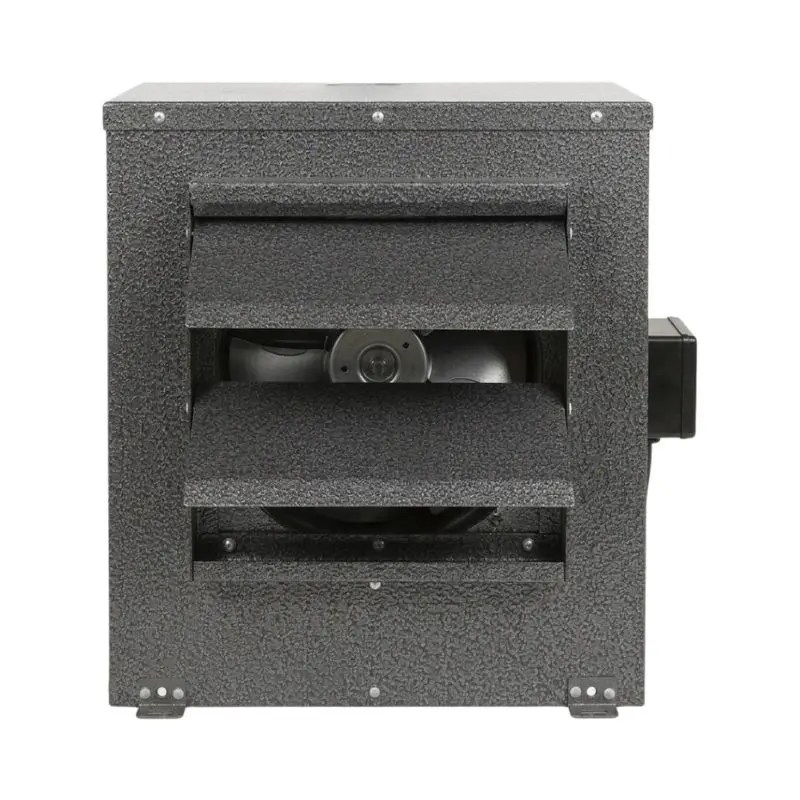

ROOF TOP CABINET FANS

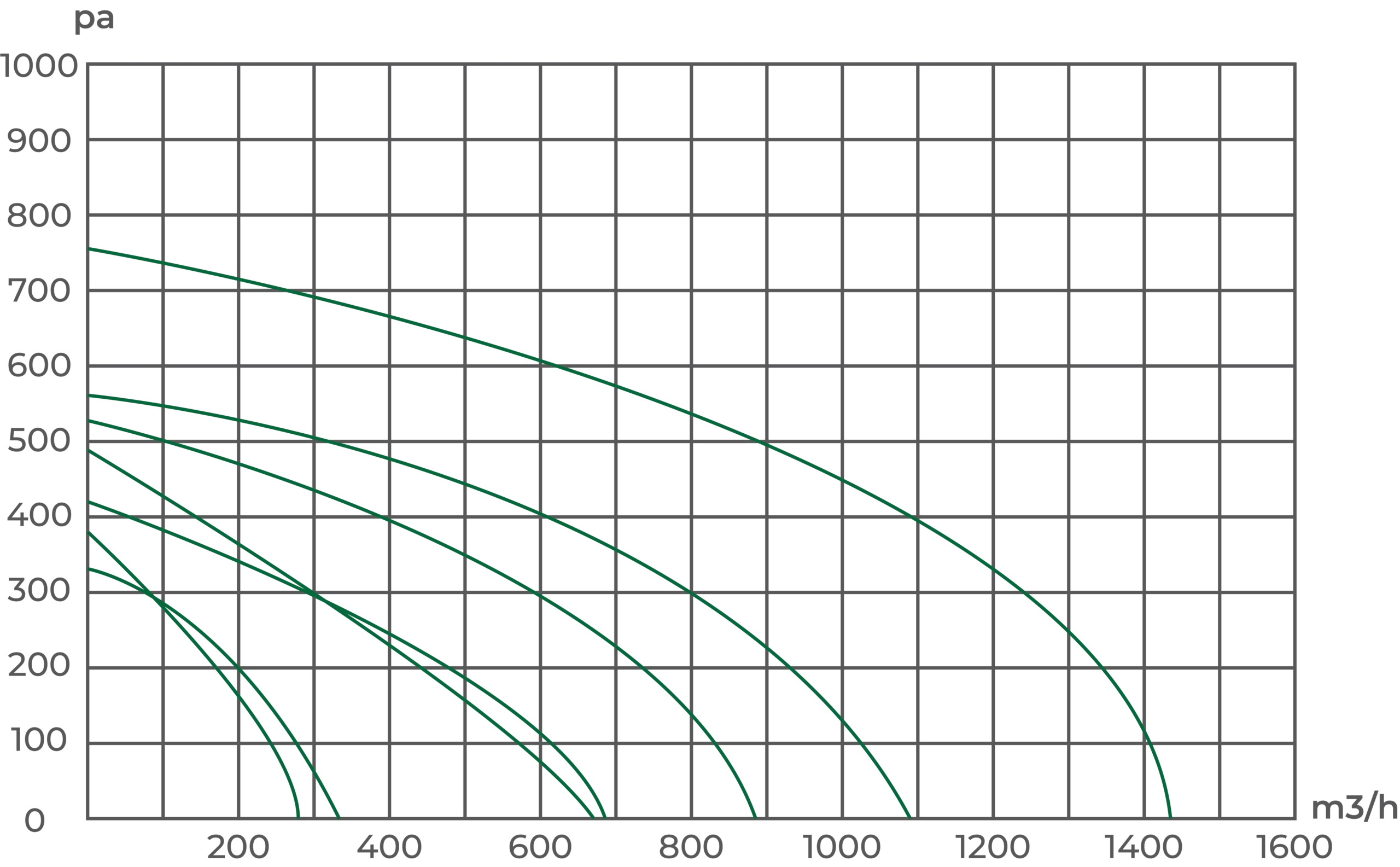

Performance Curve

Curve

Product Dimension

Unit: mm

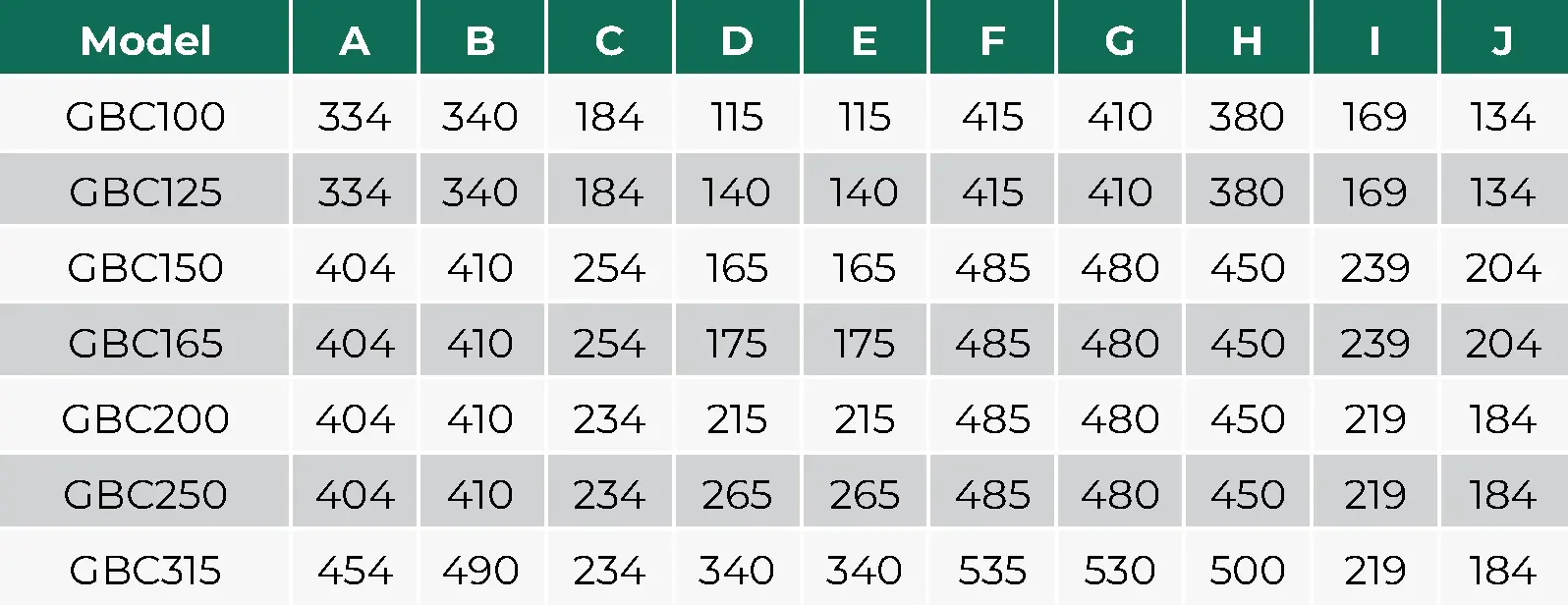

Size & Dimension

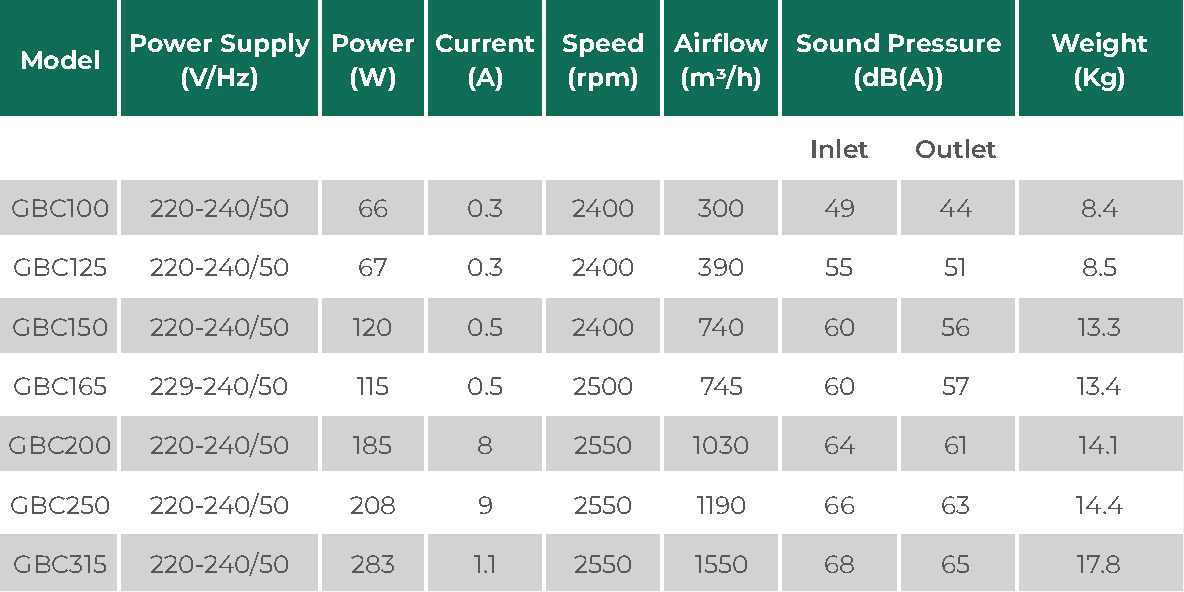

Product Parameters
